Hinged Non-Welded Bow Spring Centralizer is designed to centralize casing within the wellbore during running and cementing operations. Installed over a stop collar, it provides secure positioning while allowing smooth movement during deployment and retrieval. Its high-performance spring bows deliver maximum standoff, ensuring efficient mud displacement and superior cement distribution for reliable zonal isolation. Available in a wide range of sizes and bow heights, it offers optimal restoring force and multiple bow configurations to meet diverse well conditions and specialized drilling applications.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.

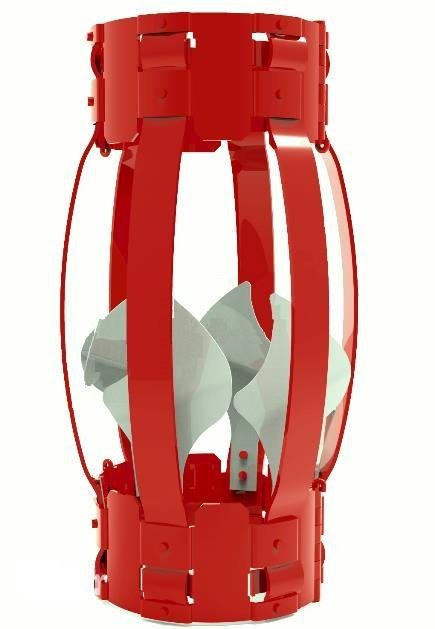

Non-Welded Turbolizer is engineered to improve cementing efficiency by generating controlled turbulence around the casing during cementing operations. Unlike conventional bow spring centralizers, it features specially designed heat-treated spring steel deflector blades mounted on standard bow springs. These flexible fins disturb the cement slurry flow, ensuring better mud displacement and more uniform cement distribution around the casing. The spring-action blades flex while passing through restrictions, minimizing the risk of damage during running operations. Manufactured from premium-grade materials, the Non-Welded Turbolizer offers excellent durability, corrosion resistance, and dependable performance in challenging wellbore conditions. Available in a wide range of casing sizes and configurations, it is suitable for vertical, directional, and deviated wells, helping achieve superior zonal isolation and long-term well integrity.
Available in 4 1/2″ to 20” sizes. Any special sizes or combination can be made available on request.

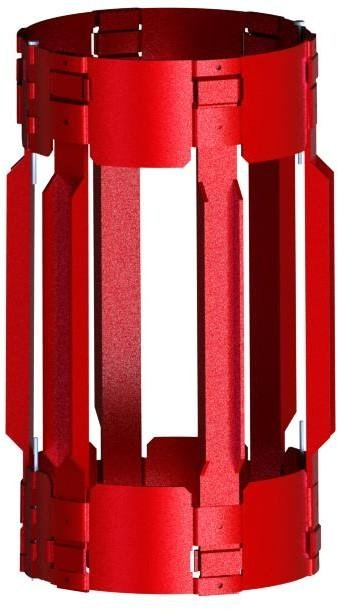

Non-Welded Positive Centralizer is specifically designed to deliver superior casing centralization while minimizing frictional drag in deviated and horizontal wellbores. Its unique flat-bottom U-profile design, available in multiple depths, ensures maximum contact stability and provides nearly 100% standoff when operating inside cased holes. Manufactured from high-strength spring steel, the centralizer is supplied 1/4 inch (6 mm) smaller than the inside diameter of the casing, allowing smooth installation and reliable performance. The innovative self-locking retaining lip securely holds the U-profile in place, eliminating weak or brittle spots commonly found in conventional designs. Its rugged construction offers excellent durability, high restoring force, corrosion resistance, and dependable performance under demanding drilling and cementing conditions.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.

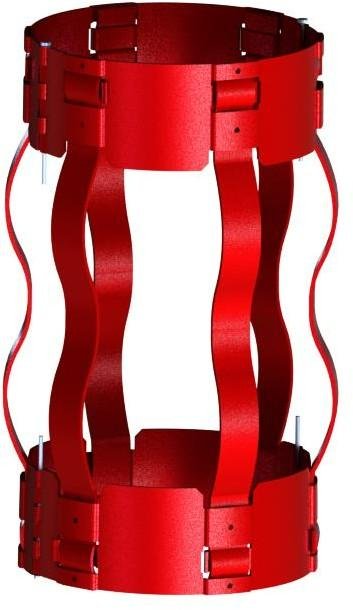

Semi Rigid Centralizer is engineered to provide reliable casing centralization in challenging well conditions, particularly in deviated, directional, and horizontal wells. Designed to pass smoothly through tight spots, restrictions, and doglegs, it minimizes running resistance while maintaining excellent casing support. Under high side loads, the centralizer performs like a rigid centralizer, delivering exceptional stability and maintaining optimal standoff for effective cement placement. Its robust construction combines a hinged design with non-welded spring bows, ensuring superior strength, flexibility, and long service life without the risk of weld failures. Manufactured from premium-grade materials with corrosion-resistant finishes, the Semi Rigid Centralizer is available in various sizes to suit different casing programs and helps improve cement distribution, enhance zonal isolation, and ensure long-term well integrity.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.

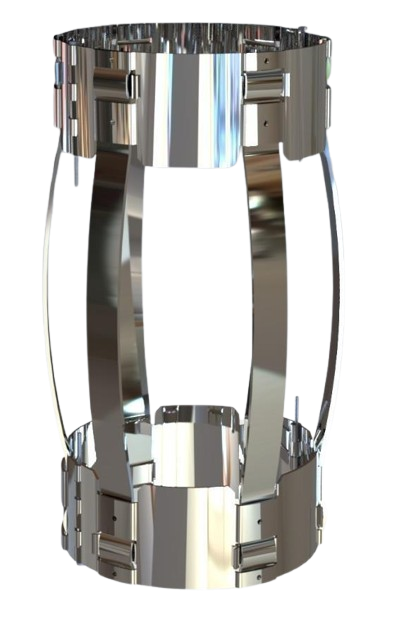

Stainless Steel Centralizer is designed for corrosive environments and water well applications where durability and contamination resistance are essential. Manufactured from 100% premium stainless steel, it offers excellent corrosion resistance, superior spring action, and reliable casing centralization. Precision heat-treated bows ensure maximum standoff and efficient cement placement for long-lasting well performance.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.

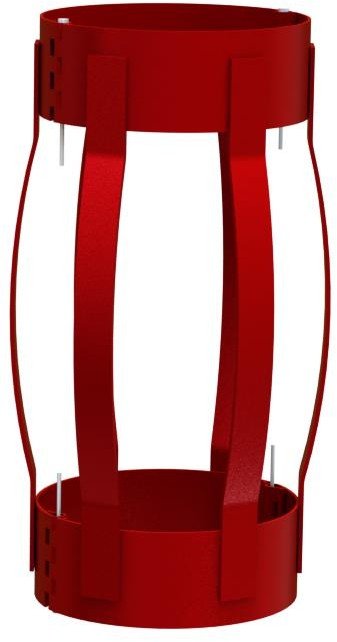

Welded Bow Spring Centralizer is designed to provide higher restoring force and superior casing support during cementing operations. Its spring bows are securely welded to reinforced end collars using low-hydrogen electrodes for maximum strength and durability. The integral hinged design ensures reliable performance under high loads while delivering excellent standoff and efficient cement placement.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.
Hinged Welded Semi Rigid Centralizer is designed to deliver superior casing centralization and reliable performance in demanding well conditions. It provides higher restoring force than conventional non-welded centralizers. The double-crested bow springs are securely welded to reinforced end collars using low-hydrogen coated electrodes under controlled welding conditions, ensuring exceptional strength and weld consistency. Its integral hinged construction withstands heavy loads and extreme stress, while the rib-reinforced end collars offer enhanced structural durability and dependable performance during cementing operations.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.
Slip-On Welded Centralizer is designed for easy installation by sliding directly over the casing outside diameter. It offers a high restoring force with low starting force, ensuring effective casing centralization during running and cementing operations. Manufactured from premium alloy steel, the bow springs are precision hot-formed and heat-treated under controlled conditions to provide consistent spring performance. Securely welded to solid end rings, the centralizer delivers excellent structural strength, minimal weld distortion, and long-lasting reliability in demanding well environments.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.

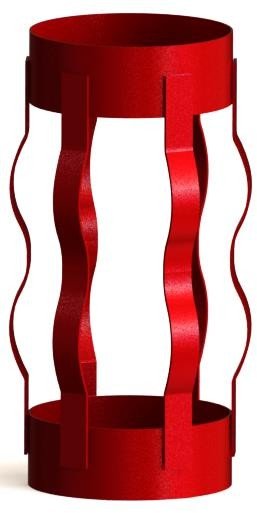

Slip-On Welded Semi-Rigid Centralizer is designed for easy installation by sliding directly onto the casing without opening the centralizer. It combines the strength of a welded design with excellent restoring force for reliable casing centralization. Supplied with heavy-duty set screw stop collars, it provides a secure grip and prevents movement during operations. The reinforced end collars feature roll-formed peripheral ribs for added rigidity, while multiple bow height options ensure optimum performance across a wide range of well conditions.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.

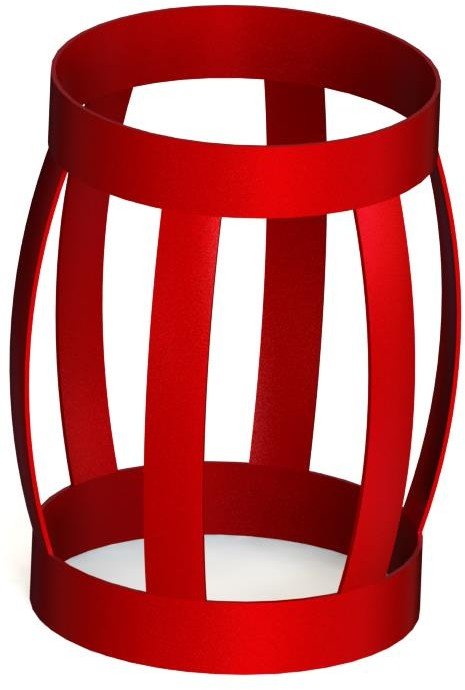

Single Piece Welded Bow Spring Centralizer is a one-piece flexible steel centralizer designed to ensure accurate casing centralization during cementing operations. Its robust welded construction provides excellent restoring force, durability, and reliable performance. Ideal for both open-hole and cased-hole applications, it delivers effective standoff and efficient cement placement even in tight tolerance well conditions.
Available in 4 1/2″ to 30” sizes. Any special sizes or combination can be made available on request.
